FB-P12B-EB

FB-P12B-EB

Active Subwoofer

Elevate your audio with the TOA FB-P12B-EB active subwoofer: A compact powerhouse delivering superior sound quality. With its dual amplification function it seamlessly integrates with TOA's HX-5, HS-120 or other full-range speakers for a balanced, rich sound in any setting. This makes it an optimal solution for a mobile speaker system for diverse application scenarios.

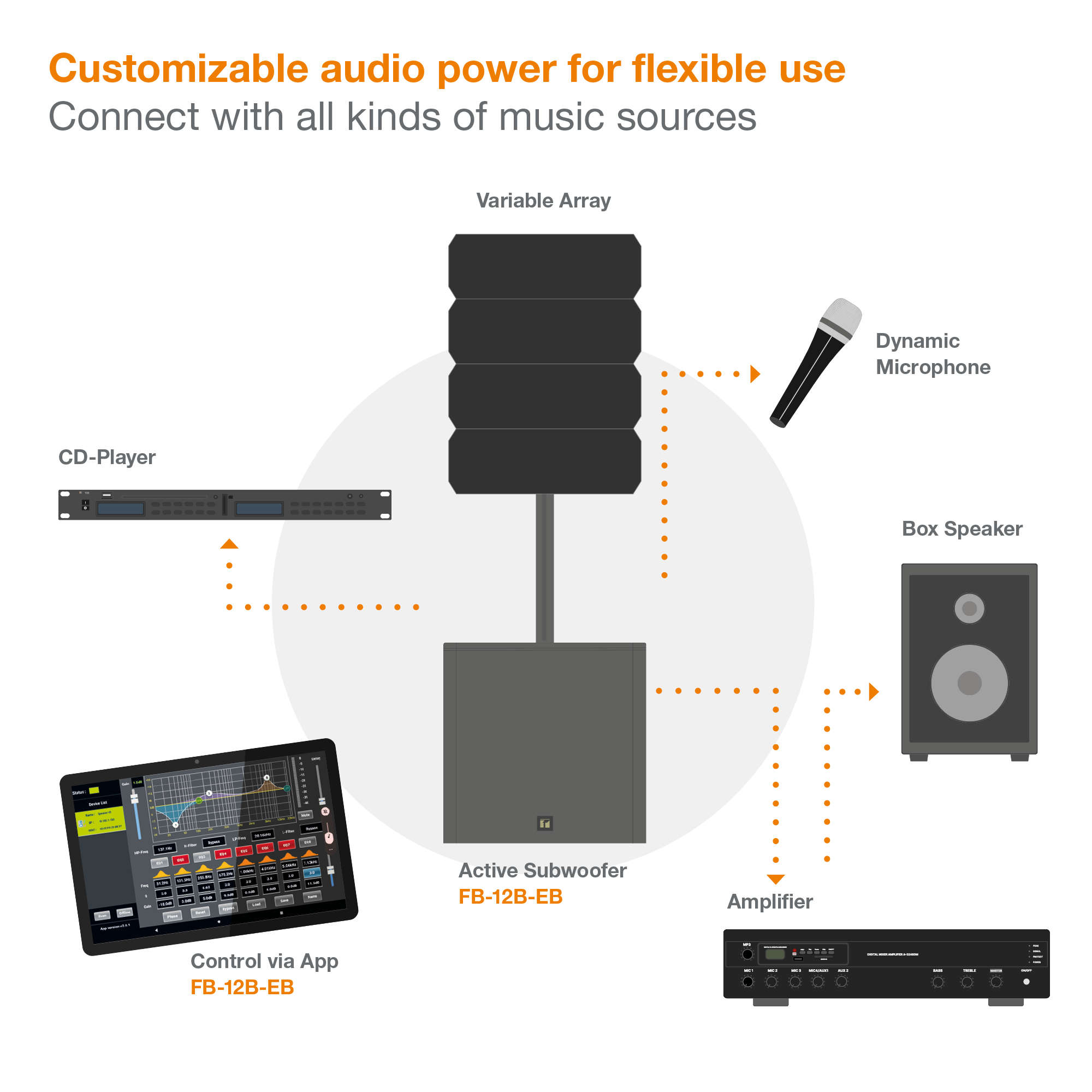

The FB-P12B-EB is equipped with three types of audio inputs: Mic, Line (XLR and phone-jack connector) and Aux (XLR, phone-jack and RCA connector) which makes it easy to connect all kinds of music sources like instruments, CD-players or simply a mobile phone. It offers two audio outputs, one for a line signal and one for a passive speaker which can be powered with up to 350 W.

The subwoofer contains advanced EQ settings including two predefined EQ setups for the combination with the HX-5 and the HS-120 speaker. The user mode allows to customize EQ settings for a personalized audio – through computer, Android or iOS App.

With its state-of-the-art technologies and a modern design, this subwoofer fits for most usecases in which a speaker with great mobility, comprehensive features and a rich sound image is required.

With its state-of-the-art technologies and a modern design, this subwoofer fits for most usecases in which a speaker with great mobility, comprehensive features and a rich sound image is required.

  • Compact, indoor-use active subwoofer system
  • Contains a high-power 32 cm (12“) woofer
  • Powerhouse with dual amplifiers
  • Use in conjunction with TOA’s HX-5, HS-120 or other full range speakers
  • Includes complex DSP with HPF, LPF and 8 band EQ
  • EQ-presets optimized for HX-5 and HS-120, preset select through toggle switch
  • Control application for Windows, Android and IOS
  • App features master volume control, 8 Band EQ, LPF & HPF in a modern design
  • Robust, handy and long-lasting design



Folleto
  • Especificación
  • Áreas de aplicación:
  • Texto de licitación
  • Descargas
Especificación
Especificaciones del producto:
FB-P12B-EB
Fuente de alimentación

220 - 240 V AC, 50 / 60 Hz
Potencia / consumo de corriente

600 W (EN 62368-1)
Respuesta en frecuencia

40 Hz - 500 Hz
Potencia nominal

350 W x 2
Sistema de amplificación

Class D
Sensibilidad (1 W, 1 m)

96 dB
Componente de altavoz

32 cm (12") cone-type
Entrada de audio

1x line/mic (balanced, XLR/phone-jack)

1x AUX (balanced, XLR/phone-jack/RCA)
Salida de audio

1x line (XLR)
Salida de altavoz

1x 8 Ω (speakon)
Control

2x Input volume control, 1x EQ select switch
Temperatura de funcionamiento

0 °C to +40 °C


Acabado

MDF, Acero,pintado,negro
Dimensiones

430 x 465 x 480 mm (Pr x Al x An)
Peso

20,2 kg
